Dual Dozer

Sub-grade Surface Preperation Has Never Been Simpler

Dual Dozer was designed for the modern day contractor working against timeclocks and tight budgets. This attachment will reduce labor and material costs while improving media yields, slab fitness and performance. Order your Dual Dozer with the quick-tach skid steer mount or the optional 3-point hitch attachment.

Electronic Packages: Order your electronic package factory direct or from your local electronics dealer, both are options as you get your Dual Dozer prepared for the jobsite!

Trimble – Lasers, Slope/Sonic, 3D, GPS
TopCon – Lasers, Slope/Sonic, 3D, GPS
Leica – Lasers, Slope/Sonic, 3D, GPS

Models & Specs

Model	Width	Weight	Box Height	Front Box Capacity	Rear Box Capacity	HP Required	Attachment Length
HDD 6 Base	6'	1,500 lbs.	19"	14.5 cu. ft.	8.5 cu. ft.	40+	58.5"
HDD 7 Base	7'	1,600 lbs.	19"	17 cu. ft.	10 cu. ft.	55+	58.5"
HDD 8 Base	8'	1,700 lbs.	19"	19.5 cu. ft.	11.5 cu. ft.	70+	58.5"

Standard Features

Baked long-lasting powder coat finish
Bolt-on, hardened steel front and rear cutting edges are removable and replaceable
Side edges are adjustable depending on cut depth
Heavy-duty construction with ¼”, 3/8”, and ½” certified American steel reinforced with 2” x 4” tubing
40 gallon per minute hydraulic block allows no restriction of oil which eliminates overheating when utilizing the adjustable flow
2 year workmanship warranty on entire product excluding laser receivers
All pivot points are greaseable
Rugged casters with wheel hub and tapered roller bearing assemblies
Accurate within 1/8 of an inch depending on electronic packages

Options

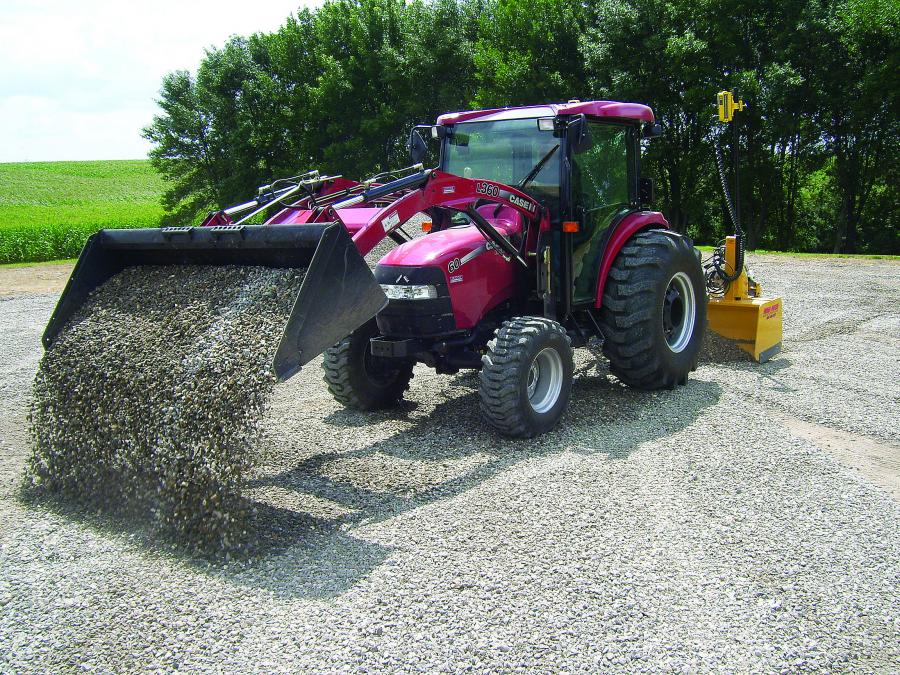

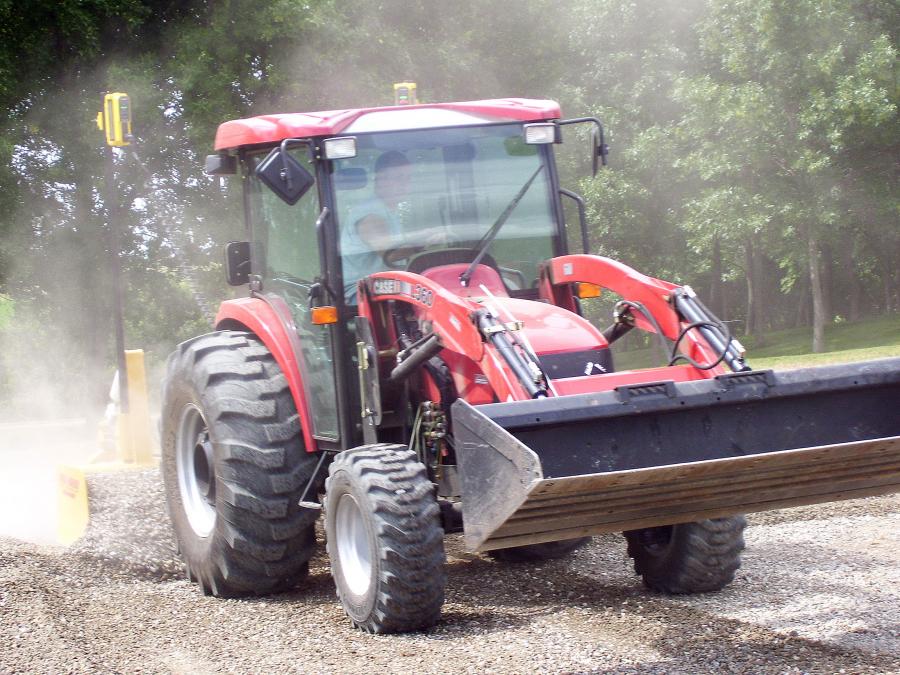

3-Point Hitch
Various-mounting brackets for GPS or 3D systems
Convex Mirror to allow for visual on material load
