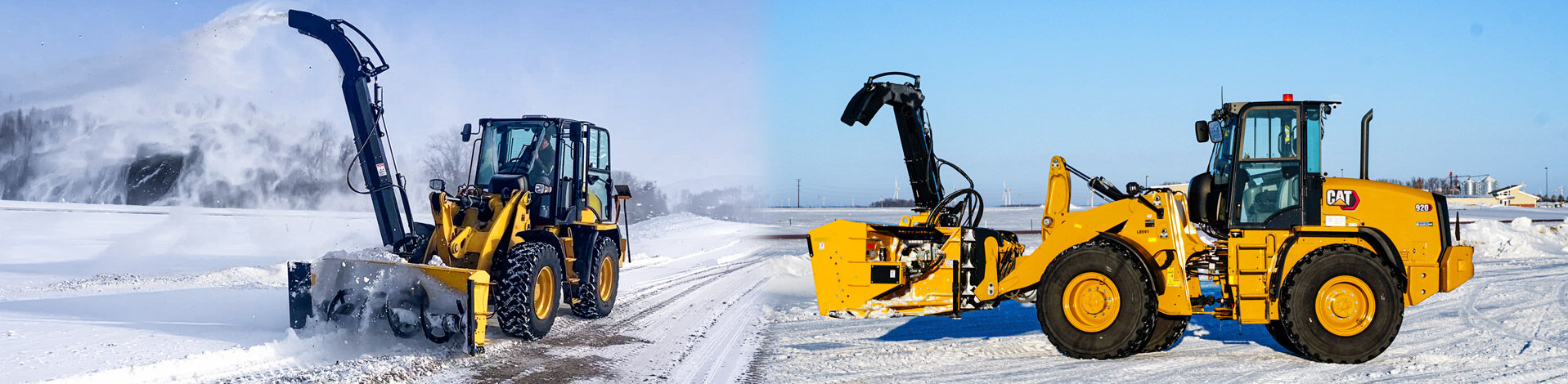

HitchDoc hydraulic snowblowers are built for demanding commercial, municipal, and industrial snow removal. Powered directly by your loader’s hydraulic system and designed for properly equipped machines with hydrostatic drive, the HDS7100 and HDS9200 eliminate the need for a separate auxiliary engine to fuel, service, or maintenance.
This design means less routine maintenance, lower operating costs, and fewer independent systems to manage, all while delivering the power and control needed for high-capacity snow removal.
100% Hydraulic Power
No auxiliary engine or DEF system.
Built for Heavy Snow
Aggressive augers and high-capacity fans handle packed and heavy snow.
Made in the USA
Heavy-duty construction manufactured in Jackson, Minnesota.
Ideal for smaller communities and operations that need the ability to clear and haul snow away. The HDS7100 can be used on a wide range of compatible skid steers, compact wheel loaders, and small-frame wheel loaders/tool carriers. It is available with either a standard chute or truck-loading chute, and both chute configurations can be used as needed.
84″ Cut Width
96″ with Wing Kit (HDS7101)
25–40 GPM
2,800–4,000 PSI
Truck Loading Available
Best for commercial and municipal snow removal where versatility and maneuverability matter.
Built for higher-capacity wheel-loader applications, the HDS9200 combines a 5,200-lb. heavy-duty build with frame-stiffening gussets designed to handle sideload stress when pushing through uneven, hard-packed snow and ice drifts. Its hydraulic drive eliminates a traditional gearbox and shear-pin system, helping reduce maintenance and mechanical failure points during demanding winter work.
108″ Cut Width
35–50 GPM
3,700+ PSI
Truck Loading & Side Discharge
Best for municipalities, airports, industrial sites, large commercial properties, and snow-hauling operations.
Select your loader manufacturer to view currently supported HDS7100 and HDS9200 hydraulic snowblower configurations.
Compatibility depends on machine model, hydraulic flow, hydraulic pressure, mounting configuration, and hydrostatic drive capability.
 |
||||
|---|---|---|---|---|
| Loader Model | 221F | 321F | 321G | 421G |
| Width | 73 | 73 | 74 | 90 |
| Blower Model | HDS7100 | HDS7100 | HDS7100 | HDS7101 (7100 with Wing Kit) |
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Loader Model | 906 | 907 | 908 | 910 | 914 | 920 | 926 | 930 | 938 |
| Width | 73 | 73 | 80 | 80 | 96 | 96 | 100 | 95 | 106 |
| Blower Model | HDS7100 | HDS7100 | HDS7100 | HDS7100 | HDS7101 (7100 with Wing Kit) | HDS7101 (7100 with Wing Kit)/ HDS9200 | HDS9200 | HDS9200 | HDS9200 |
 |
|||
|---|---|---|---|
| Loader Model | WA200-8 | WA270-8 | WA320-8 |
| Width | 96 | 99 | 102 |
| Blower Model | HDS7101 (7100 with Wing Kit) | HDS7101 (7100 with Wing Kit) | HDS9200 |
 |
||||
|---|---|---|---|---|
| Loader Model | W70C | W80C Long Reach | W80C High Speed | W100D |
| Width | 73 | 73 | 74 | 90 |
| Blower Model | HDS7100 | HDS7100 | HDS7100 | HDS7101 (7100 with Wing Kit) |
 |
|||
|---|---|---|---|
| Loader Model | L35 | L45 | L50 |
| Width | 76 | 85 | 85 |
| Blower Model | HDS7100 | HDS7100 | HDS9200 |
 |
|
|---|---|
| Loader Model | DL200-7 |
| Width | 100 |
| Blower Model | HDS9200 |
 |
||||
|---|---|---|---|---|
| Loader Model | ZW100-7 | ZW120-7 | ZW140-7 | ZW160-7 |
| Width | 86 | 89 | 99 | 99 |
| Blower Model | HDS7101 | HDS7101 | HDS7101 | HDS7101 |
 |
|||
|---|---|---|---|
| Loader Model | 244P | 324P | 344P |
| Width | 78 | 82 | 93 |
| Blower Model | HDS7100 | HDS7100 | HDS7101 (7100 with Wing Kit) |
Don’t see your loader?
That doesn’t necessarily mean your machine isn’t compatible. Send us your loader make, model, flow, and pressure, and our team can help determine the right setup.
Snowblower performance starts with the right machine match. Flow, operating pressure, drive system, mounting configuration, and intended application all play a role in determining which setup is right for your loader. Properly equipped machines with hydrostatic drive provide the low-speed control to let the blower work efficiently in heavy snow.
Tell us what machine you’re running and how you plan to use it, and the HitchDoc team can help identify the appropriate HDS7100 or HDS9200 configuration, mounting setup, and motor package for the job.
"*" indicates required fields

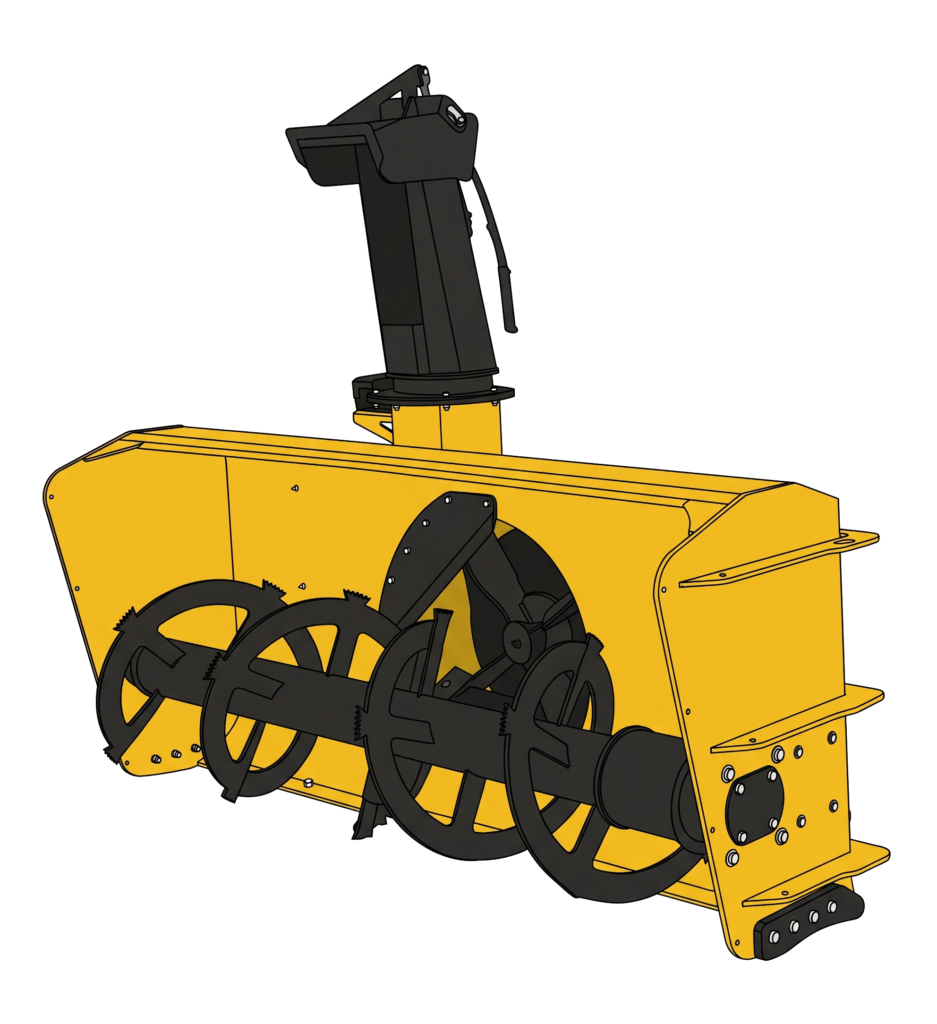

The HDS7100 delivers high-capacity snow removal in a compact, versatile package. Designed for properly equipped high-flow machines and compatible wheel loaders, it combines strong hydraulic performance with the maneuverability needed for commercial and municipal snow removal.
CUT WIDTH
84.5″
OPTIONAL CUT WIDTH
96.7″ with HDS7101 configuration
HYDRAULIC FLOW
25–40 GPM
HYDRAULIC PRESSURE
2,800–4,000 PSI
WEIGHT
Approx. 1,480 lbs.
FAN DIAMETER
26″
OPTIONAL TRUCK LOADING CHUTE
With aggressive snow-cutting capability, hydraulic chute control, and available truck-loading options, the HDS7100 is built to handle demanding snow conditions while giving operators precise control over where the snow goes.

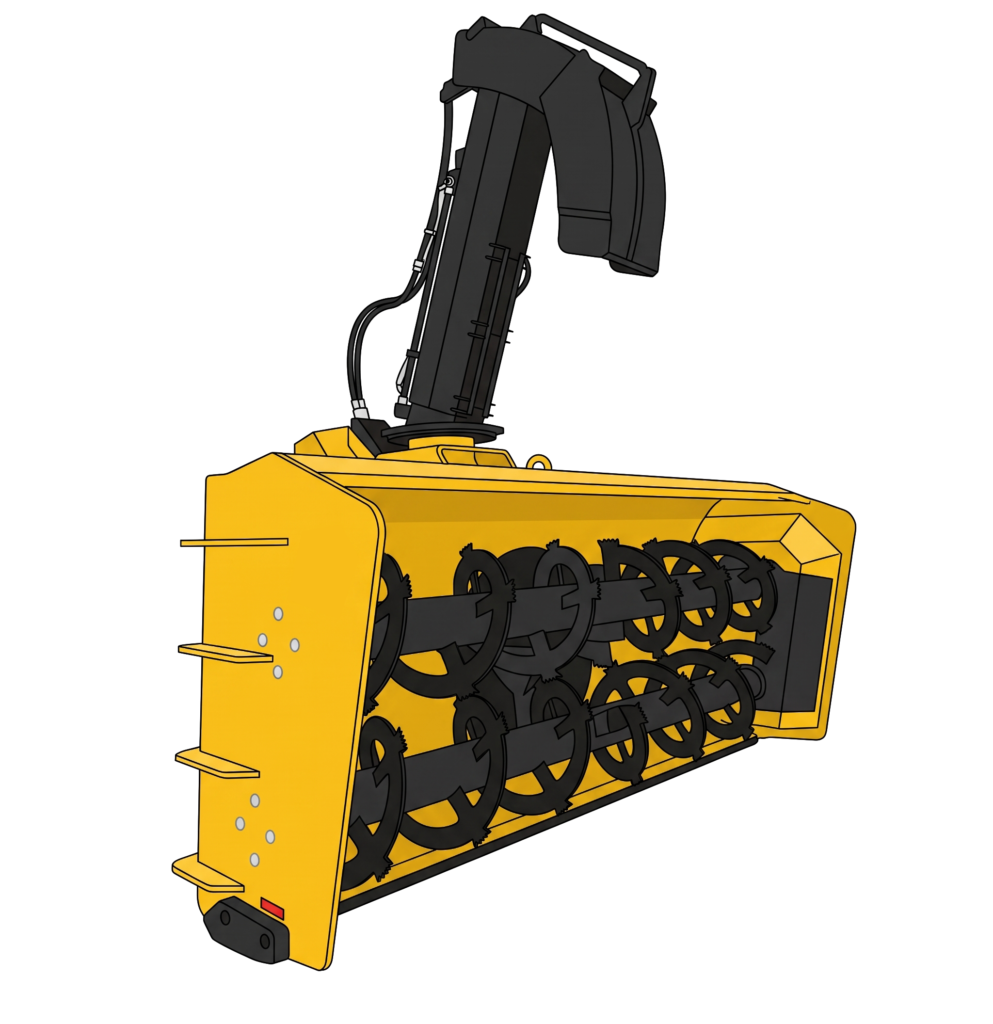

The HDS9200 is built for large-scale snow removal where capacity, durability, and control matter most. Designed for compatible wheel loaders, it combines a heavy-duty dual-auger system with high hydraulic capacity and left and right side discharges and a telescoping truck-loading chute.
CUT WIDTH
108″
CUT HEIGHT
45″
HYDRAULIC FLOW
35–50 GPM
HYDRAULIC PRESSURE
3,700+ PSI
WEIGHT
Approx. 5,200 lbs.
FAN DIAMETER
32″
STANDARD LEFT AND RIGHT SIDE DISCHARGE WITH TRUCK LOADING CHUTE
Whether clearing large commercial properties, municipal routes, airports, or loading snow for removal, the HDS9200 is built to move a high volume of snow efficiently.
Less Maintenance. Fewer Systems.
Break Through Heavy, Packed Snow
Put Snow Where You Want It

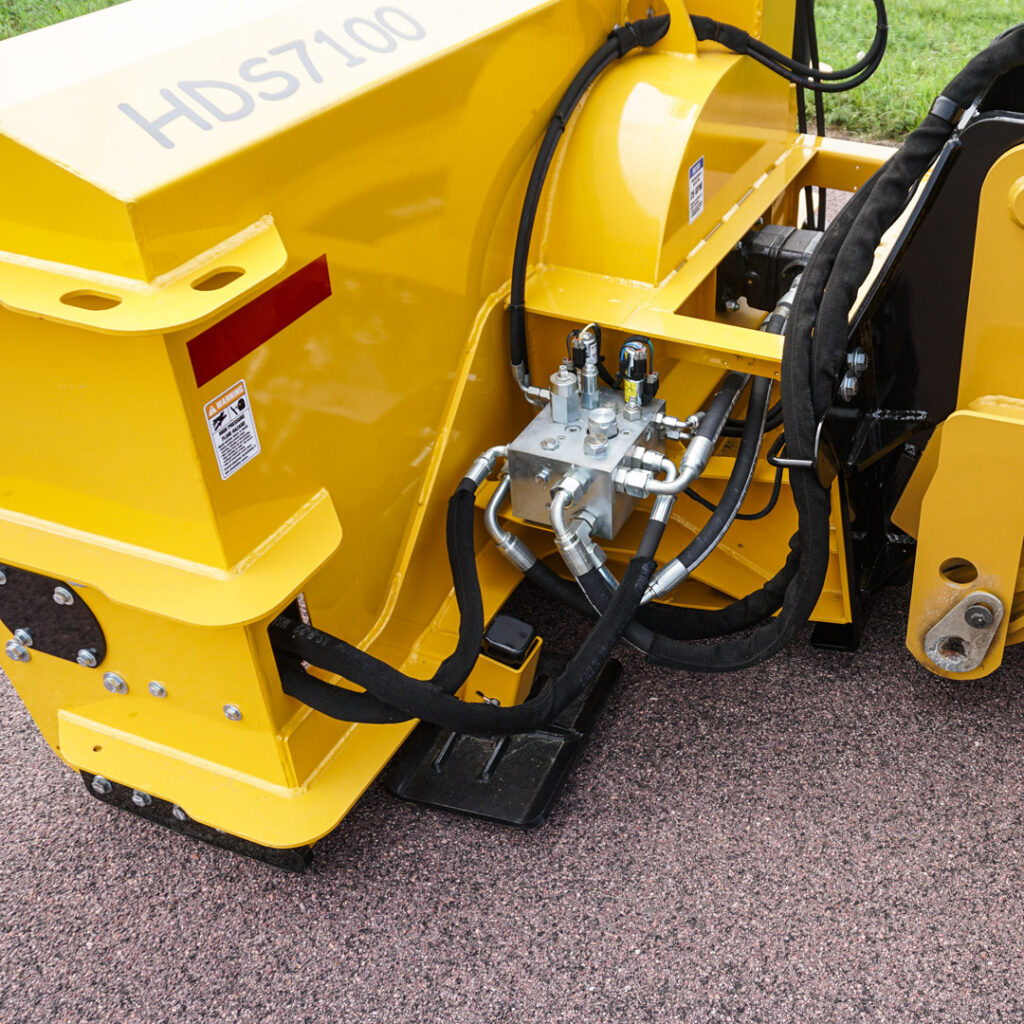

The HDS7100 and HDS9200 use your loader’s existing power system to drive the blower, eliminating the need for a separate auxiliary engine or traditional mechanical drivetrain.
That means fewer systems to fuel, service, and maintain throughout the season.

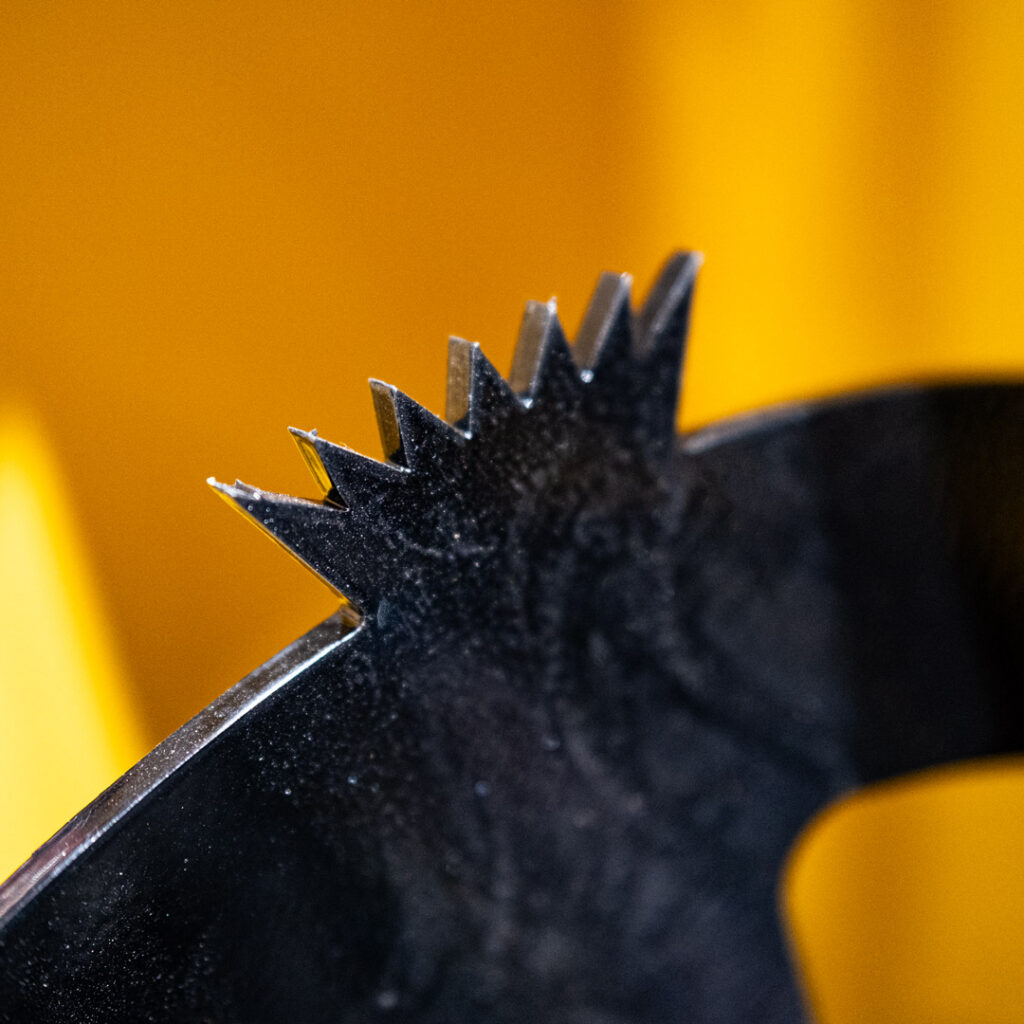

Aggressive tiger teeth help break apart packed, frozen, and heavy snow before feeding it into the auger and fan system. The tiger teeth are also replaceable, allowing worn teeth to be replaced as needed.

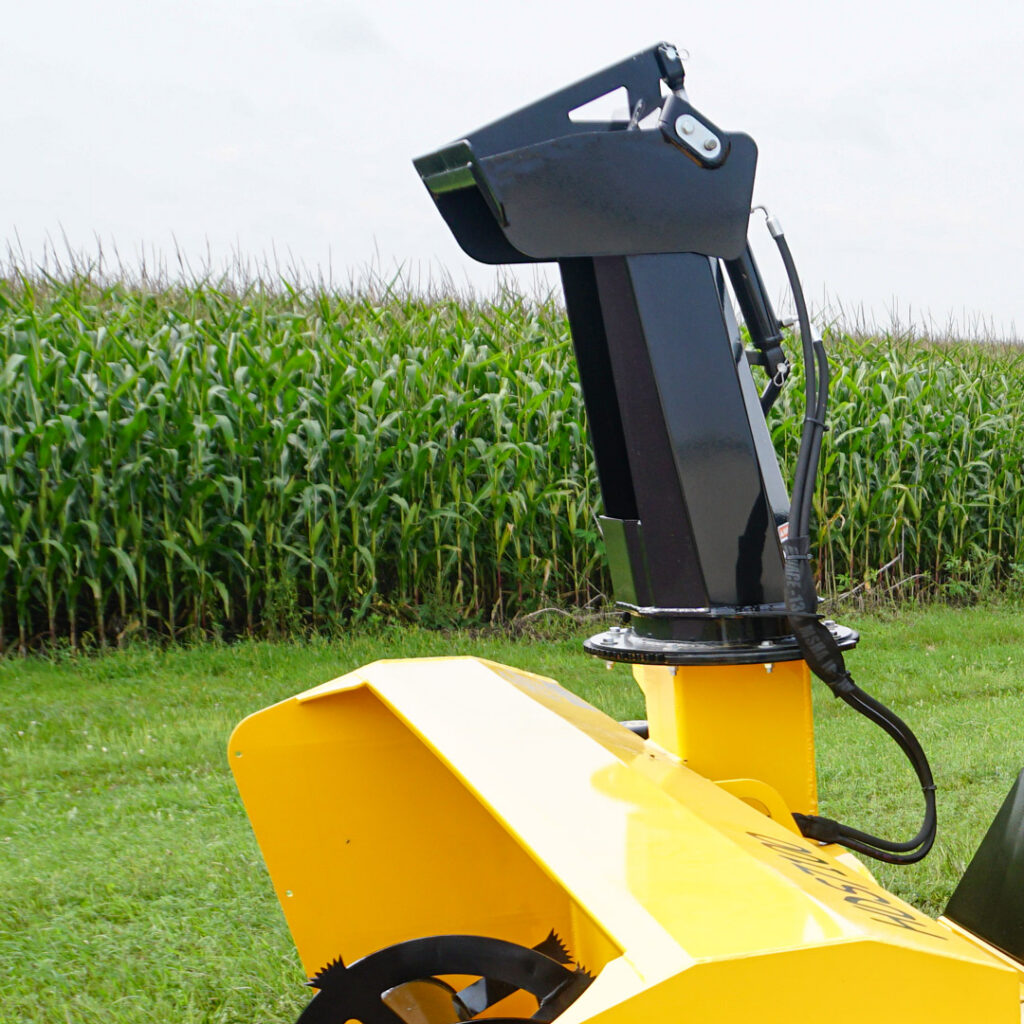

Chute rotation and deflection can be controlled directly from the cab, giving operators precise control over discharge direction and placement.
Whether you’re clearing a roadway, opening a large lot, or loading snow for removal, the operator can quickly adjust where the snow goes as conditions change.
No Traditional Shear Pins or Gearbox Drive
Move Snow. Then Move It Out.
Overbuilt to outlast
A high-pressure bypass relief system helps protect the blower during abrupt stops while eliminating traditional shear pins.
With fewer mechanical drive components to manage, the system stays straightforward and durable and prevents the user from having to make uncomfortable and time-consuming repairs in bad weather.

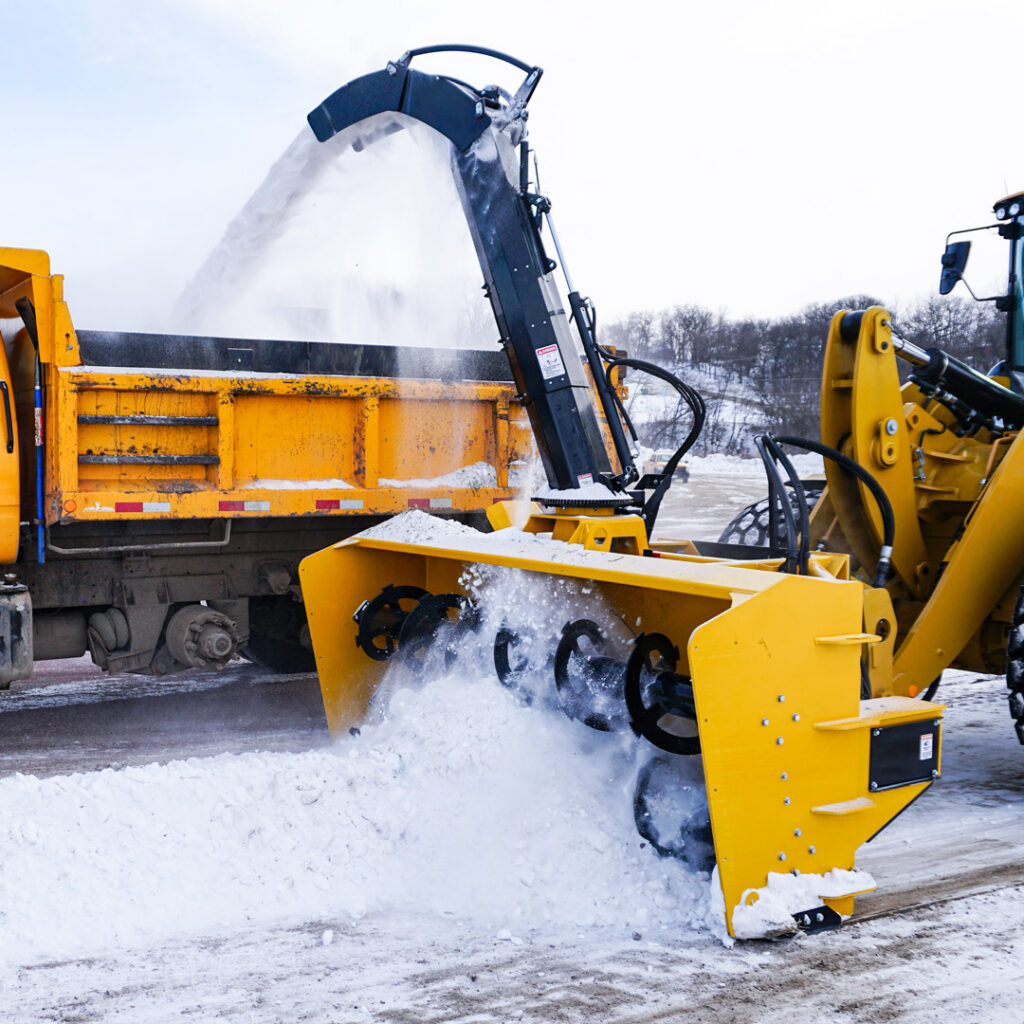

The HDS9200 includes a telescoping truck-loading chute that allows operators to direct snow into trucks for transport.
Truck-loading capability is also available for compatible HDS7100 configurations, giving operators another option when snow needs to be removed from the site rather than simply relocated.

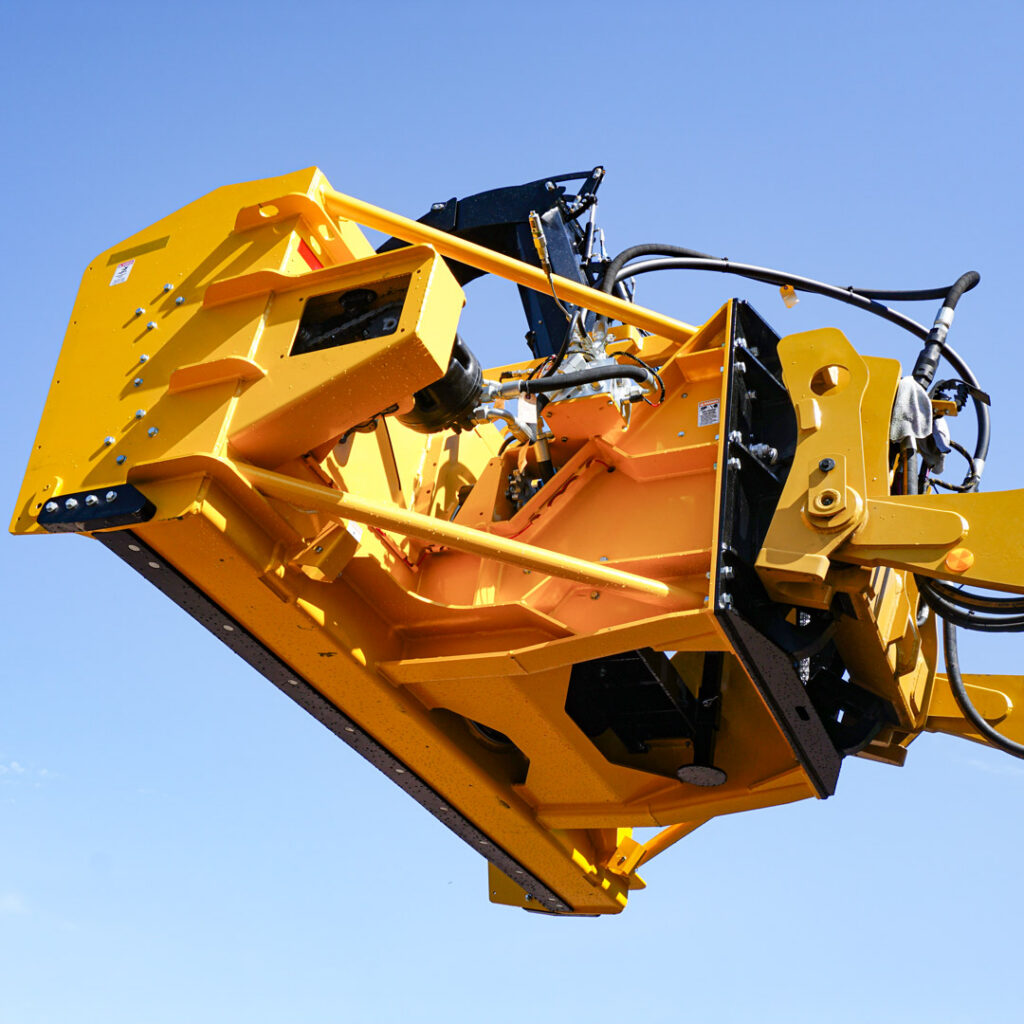

The HDS9200 is built with heavy-duty construction and frame-stiffening gussets designed to handle sideload stress in hard-packed snow and ice. At approximately 5,200 lb., it has the mass and rigidity needed to stay stable under load while remaining light enough to avoid porpoising during transport.
That combination of weight, reinforcement, and structural stiffness helps deliver smoother operation, consistent cutting position, and long-term durability in demanding commercial and municipal snow-removal work.
HDS7100 and HDS9200 configurations are available with features and options designed to match your machine, application, and snow-removal needs.
Built for operators who need dependable performance, lower ownership complexity, and equipment that can handle hard winter work year after year.
With no separate engine or gearbox to maintain, there is less service work during snow season and less preparation required before winter starts.
A loader-powered blower costs substantially less than a self-contained snowblower, before even accounting for the added fuel and engine-maintenance costs associated with a separate power unit.
Heavy construction and frame-stiffening gussets are built into the design to handle sideload stress in uneven drifts of hard-packed snow and ice. The HDS9200 weighs approximately 5,200 lb., giving it the mass and rigidity needed for demanding work while remaining light enough to avoid porpoising during transport.
The HDS7100 and HDS9200 cover different machine sizes and snow-removal needs, from smaller communities and compact wheel loaders to high-capacity municipal and commercial operations.
See how HitchDoc’s loader-powered snowblowers handle high-volume clearing, tough snow conditions, side discharge, and truck-loading applications.
The HDS7100 and HDS9200 are designed to take advantage of the power, control, and low-speed capability of properly equipped loaders. Matching the blower to your machine’s hydraulic flow, pressure, drive system, and mounting configuration helps deliver consistent performance through deep, heavy, and hard-packed snow.
Properly equipped machines with hydrostatic drive provide the controlled travel speed needed to let the blower work efficiently while maintaining available hydraulic power.
Loader configurations can vary even within the same model family.
Send us your loader make, model, hydraulic flow, and pressure, and the HitchDoc team can help determine the appropriate snowblower and mounting configuration for your machine.
A hydrostatic drive gives the operator precise control over ground speed while maintaining hydraulic power to the snowblower.
That means the loader can move steadily through deep, heavy snow at the speed the blower needs without sacrificing hydraulic performance. The result is better control, smoother operation, and more consistent snow processing.

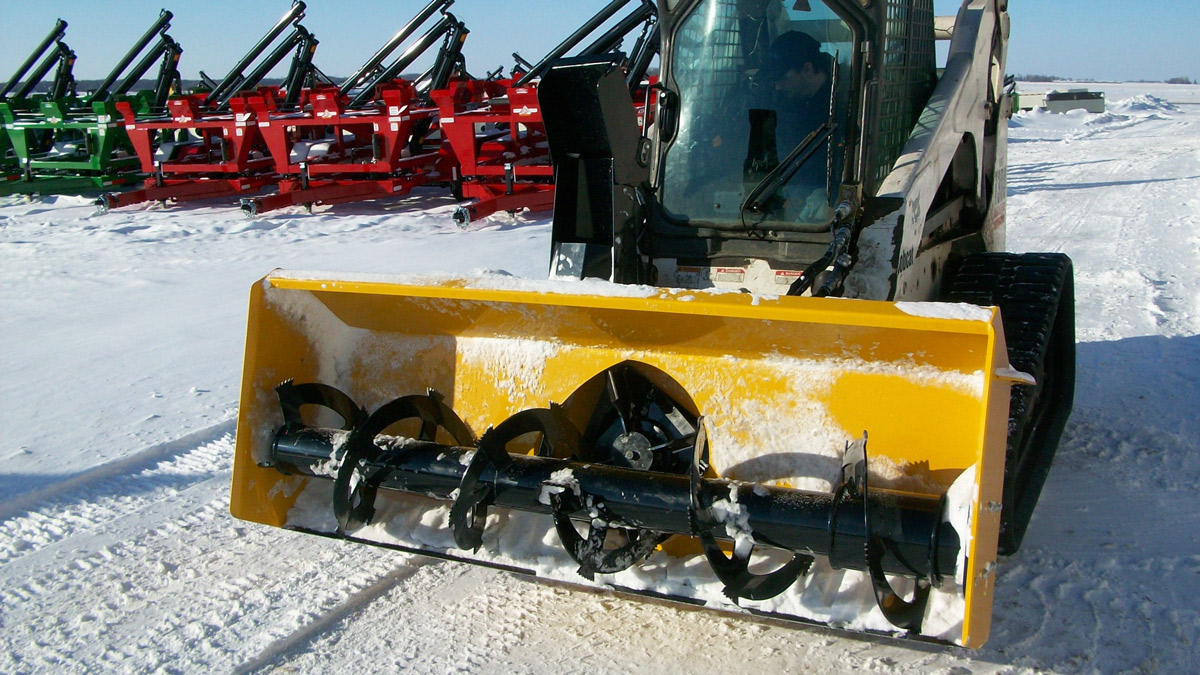

The HDS7100 and HDS9200 are built for high-capacity loader applications, but HitchDoc offers snowblower options for a wide range of equipment.

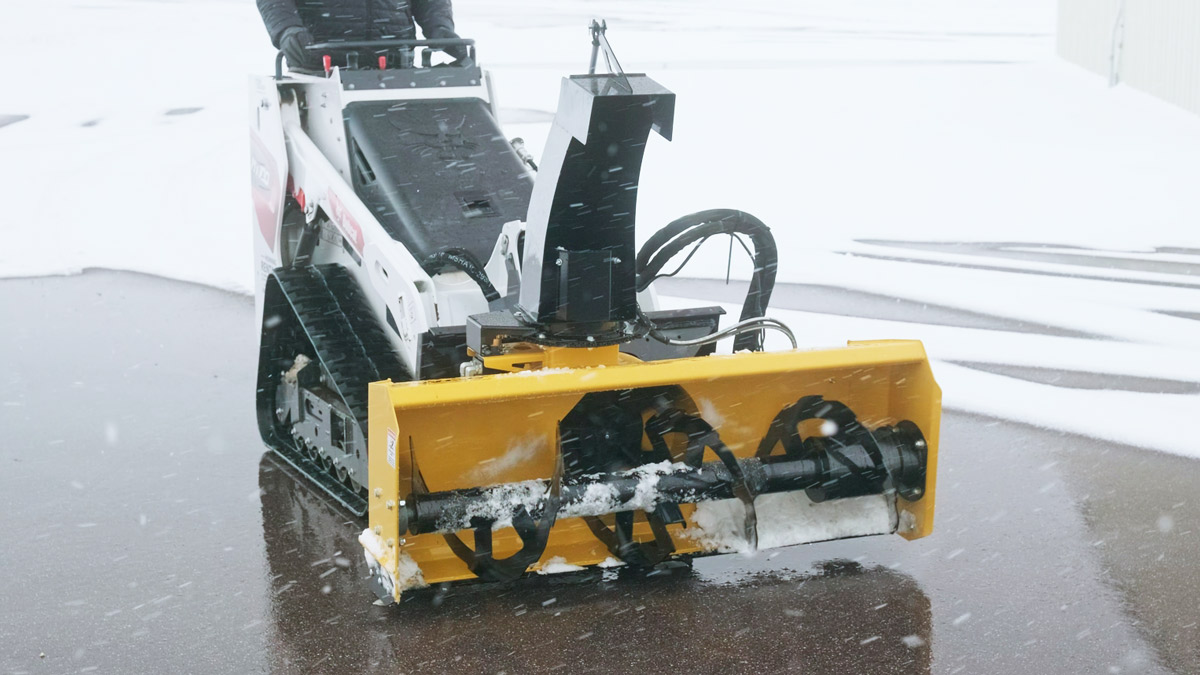

Explore Mini Skid Steer Snowblowers, Skid Steer Snowblowers, or PTO Tractor Snowblowers to find the right fit for your machine.
| Model | Compatible Machine | Cut Width | Cut Height | Overall Width | Overall Height | Weight | Fan Diameter | Flow Required |
|---|---|---|---|---|---|---|---|---|
| HDS7100 (HDS7101*) | Skid Steer or Wheel Loader | 84" (or 96") | 36.5" | 90.5” (or 96.7”) | 73.7” | 1,480 lbs. (or 1,557 lbs.) | 26” | 25-40 gpm at 2,800-4,000 psi |
| HDS9200 | Wheel Loader (Hydrostatic Drive) | 108" | 45" | 114” | 127” | 5,200 lbs. | 32” | 35-50 gpm at 3,700-5,000 psi |
If your machine does not meet the hydraulic or drive requirements for the HDS7100 or HDS9200, HitchDoc offers additional snowblower options designed around different equipment types and power systems.

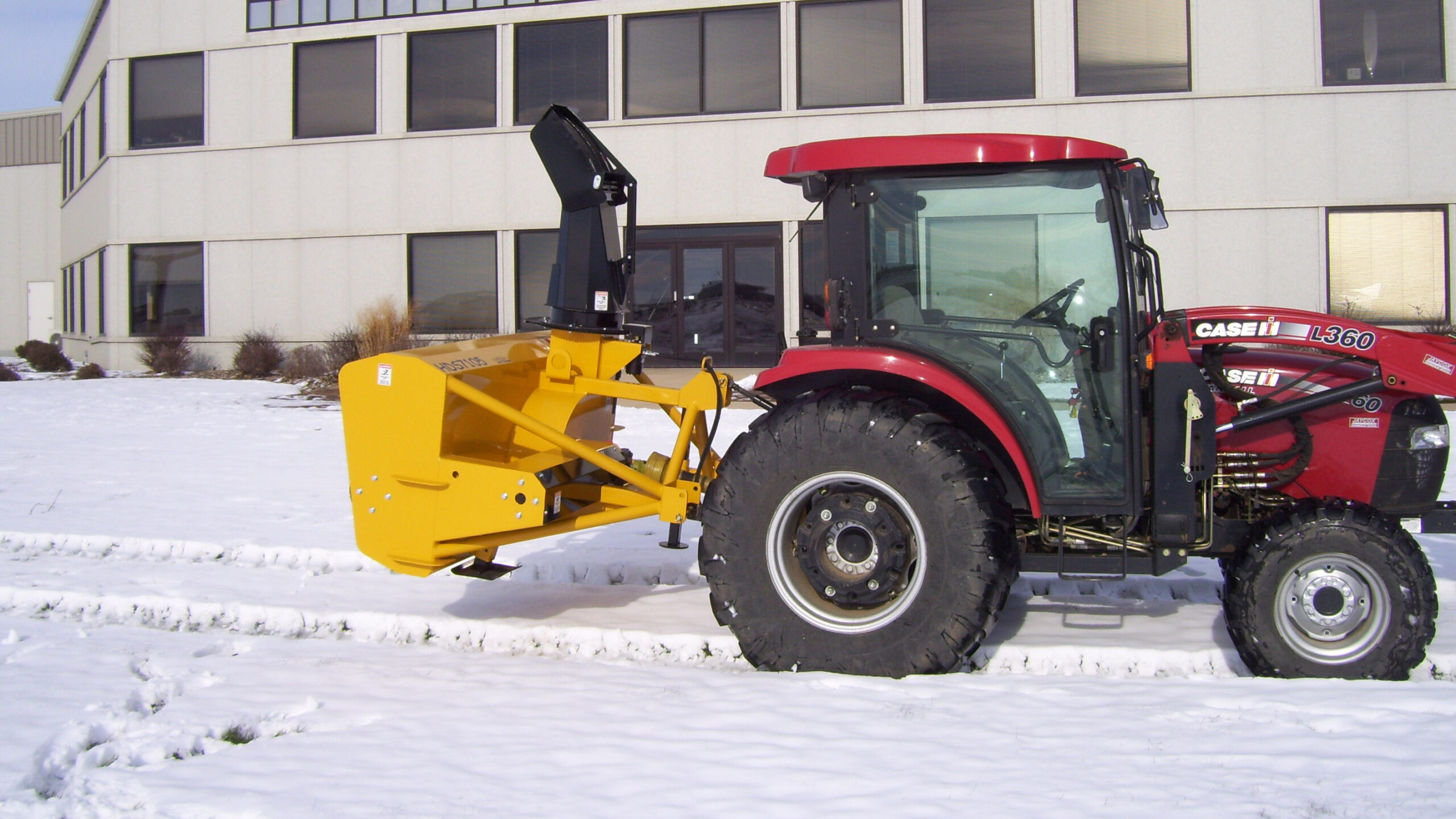

Explore our Skid Steer Snowblowers for compatible skid steers or our PTO Tractor Snowblowers for tractors needing a front or rear PTO snowblower.
Not sure which direction is right for your equipment? Send us your machine information and our team can help point you toward the best HitchDoc snowblower family.
The HDS7100 is a more compact and versatile hydraulic snowblower designed for properly equipped high-flow machines and compatible wheel loaders. The HDS9200 is a larger, higher-capacity wheel loader snowblower built for demanding commercial, municipal, industrial, and large-scale snow removal. The HDS9200 also includes standard truck-loading capability.
Compatibility depends on several factors, including drive system, loader model, hydraulic flow, hydraulic pressure, mounting configuration, and model year. Use the compatibility checker above as a starting point, then contact HitchDoc with your machine information so our team can help verify the appropriate snowblower and setup.
A hydrostatic drive allows the operator to precisely control ground speed while maintaining hydraulic power to the snowblower. This lets the loader move steadily through deep or heavy snow at the speed the blower needs for consistent performance.
The HDS7100 requires approximately 25–40 GPM, while the HDS9200 requires approximately 35–50 GPM. Hydraulic pressure requirements also differ between models, so the complete hydraulic specifications of your loader should be verified before selecting a configuration.
Hydraulic snowblowers can reduce maintenance because they do not require a separate auxiliary engine or traditional mechanical drivetrain to power the blower. That means there is no additional engine oil, fuel system, belts, or engine-related service schedule to manage. Routine inspection and maintenance of the snowblower and hydraulic system are still important.
Using the loader’s existing hydraulic system eliminates the fuel, servicing, and upkeep associated with a separate auxiliary engine. Fewer independent systems to maintain can help reduce ongoing operating costs and simplify fleet maintenance.
Because HitchDoc hydraulic snowblowers do not use a separate auxiliary engine, they do not add another engine consuming fuel and producing emissions during operation. For fleets looking to simplify equipment and reduce the number of powered systems on a jobsite, hydraulic operation can offer a cleaner approach due to the more efficient loader engines compared to self-contained blower engines.
Yes. The HDS9200 includes a telescoping truck-loading chute designed to direct snow into trucks for transport. Truck-loading capability is also available for compatible HDS7100 configurations.
These snowblowers are designed for demanding snow removal applications including municipalities, commercial properties, industrial facilities, airports, large parking areas, and operations where snow must be loaded and hauled away.
Not seeing your loader listed does not necessarily mean it is incompatible. Loader specifications and configurations can vary significantly. Contact HitchDoc with your loader make, model, hydraulic flow, and hydraulic pressure, and our team can help evaluate the available options.
Yes. In addition to the HDS7100 and HDS9200 hydraulic snowblowers, HitchDoc offers dedicated Skid Steer Snowblowers, Mini Skid Steer Snowblowers, and PTO Tractor Snowblowers for a variety of machine sizes, hydraulic systems, and snow-removal applications.
Yes. In addition to its truck-loading chute, the HDS9200 can discharge from either side, giving operators added flexibility depending on the jobsite and snow-removal application.
Yes. The tiger teeth are replaceable and can be cut off and welded back on as needed when wear occurs.
Tell us what you’re running and how you plan to use it.
Our team can help determine which HitchDoc hydraulic snowblower fits your machine, hydraulic system, mounting configuration, and snow-removal application.
